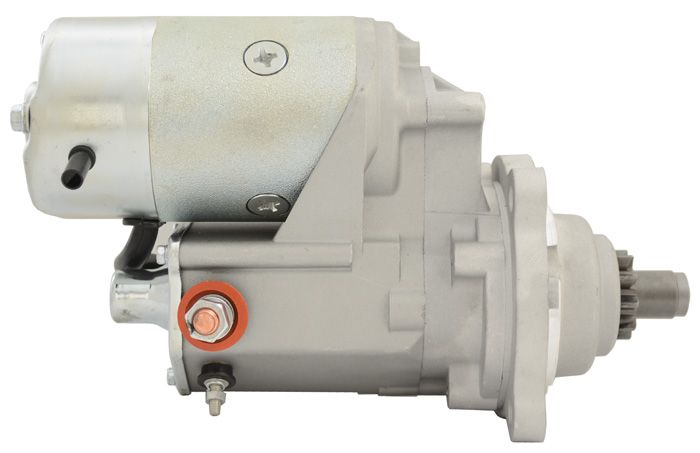

STARTER MOTOR 12V 2.5KW 10TH CW UNIVERSAL PERKINS MOUNT AEOSJ279

STARTER MOTOR 12V 2.5KW 10TH CW UNIVERSAL PERKINS MOUNT AEOSJ279

Very Common Replacement for many Perkins applications. 4 Position rotatable front housing allowing for multiple mountion position options.

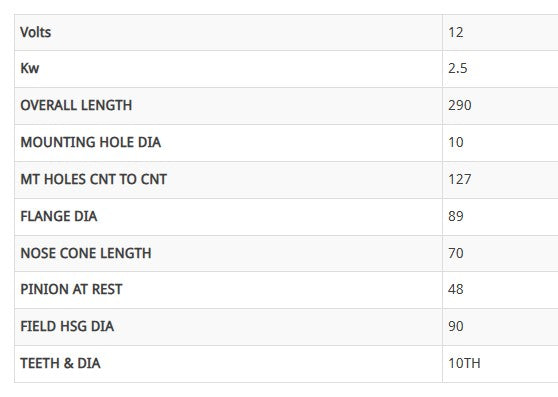

127mm centre to centre 90-90 Mounting studs measurements

48mm Pinion at rest

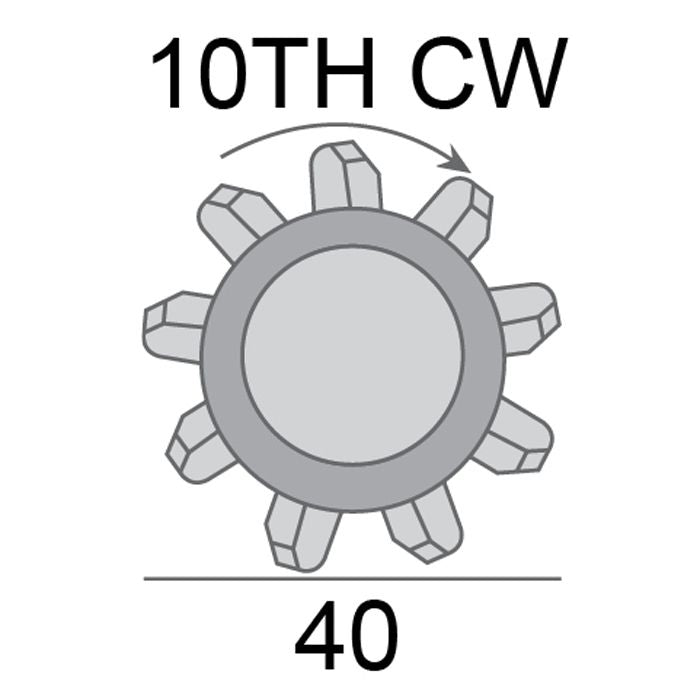

40mm 10tooth pinion

89mm Mounting Flange

Clockwise rotation

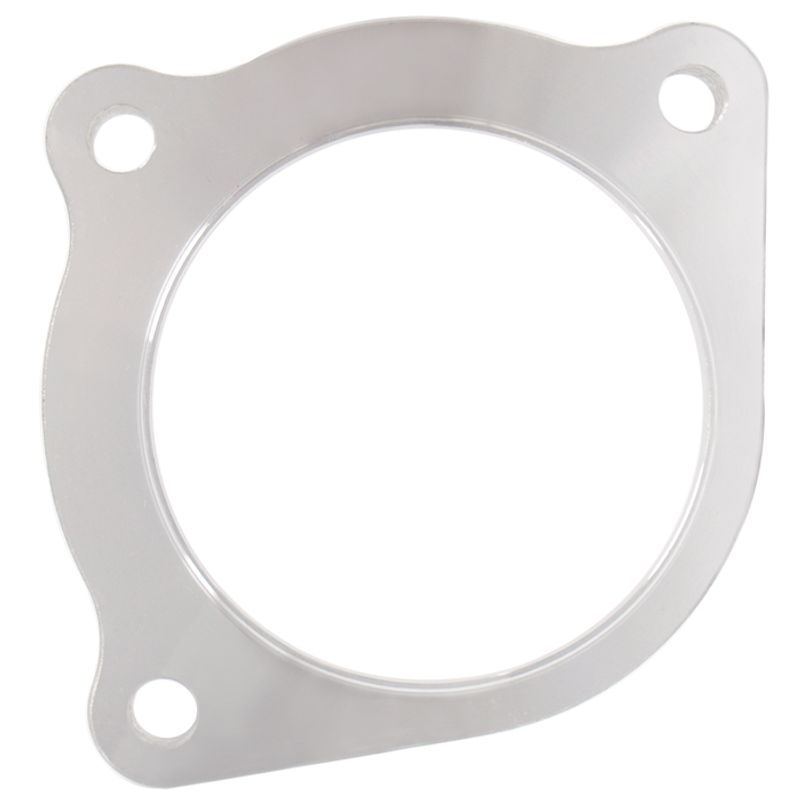

Mounting Spacer available as shown AEOS1800 18mm to change Pinion at Rest to 30mm

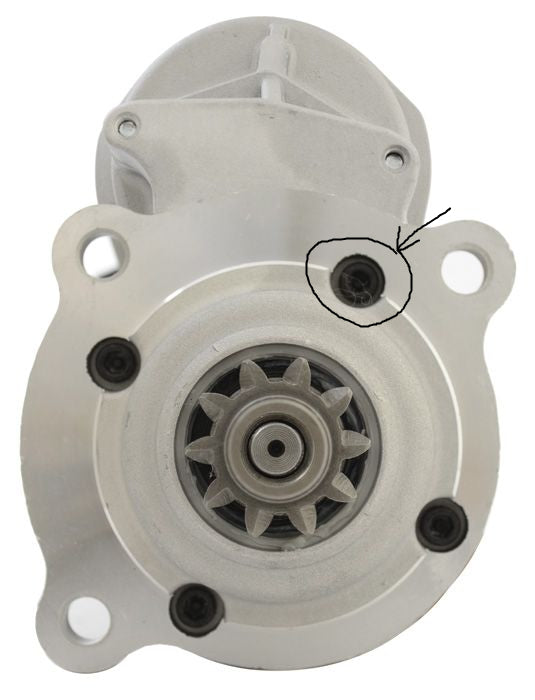

***NB 1 short mounting bolt MUST be returned to the original position or it will lock up the starter!
